Description

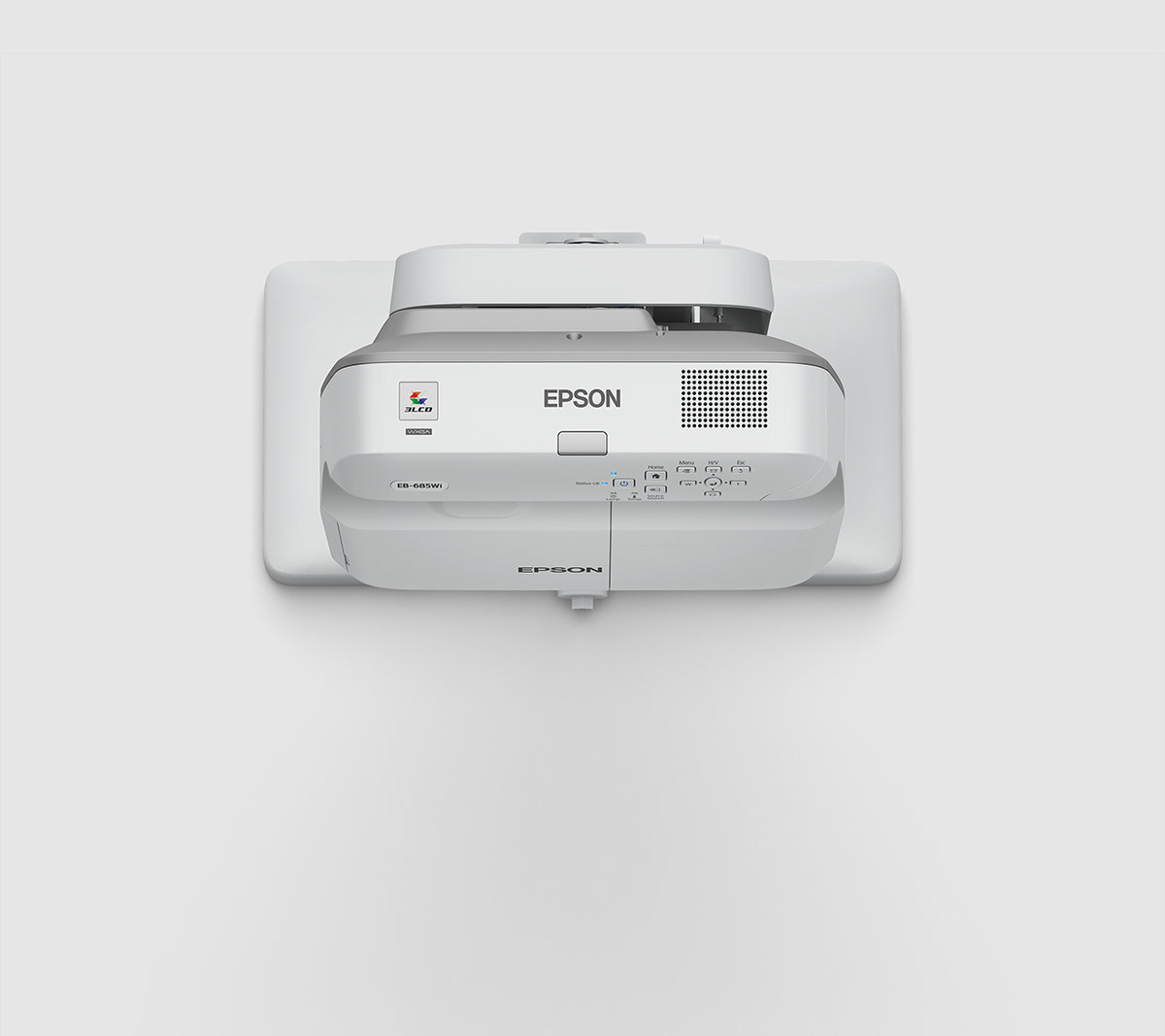

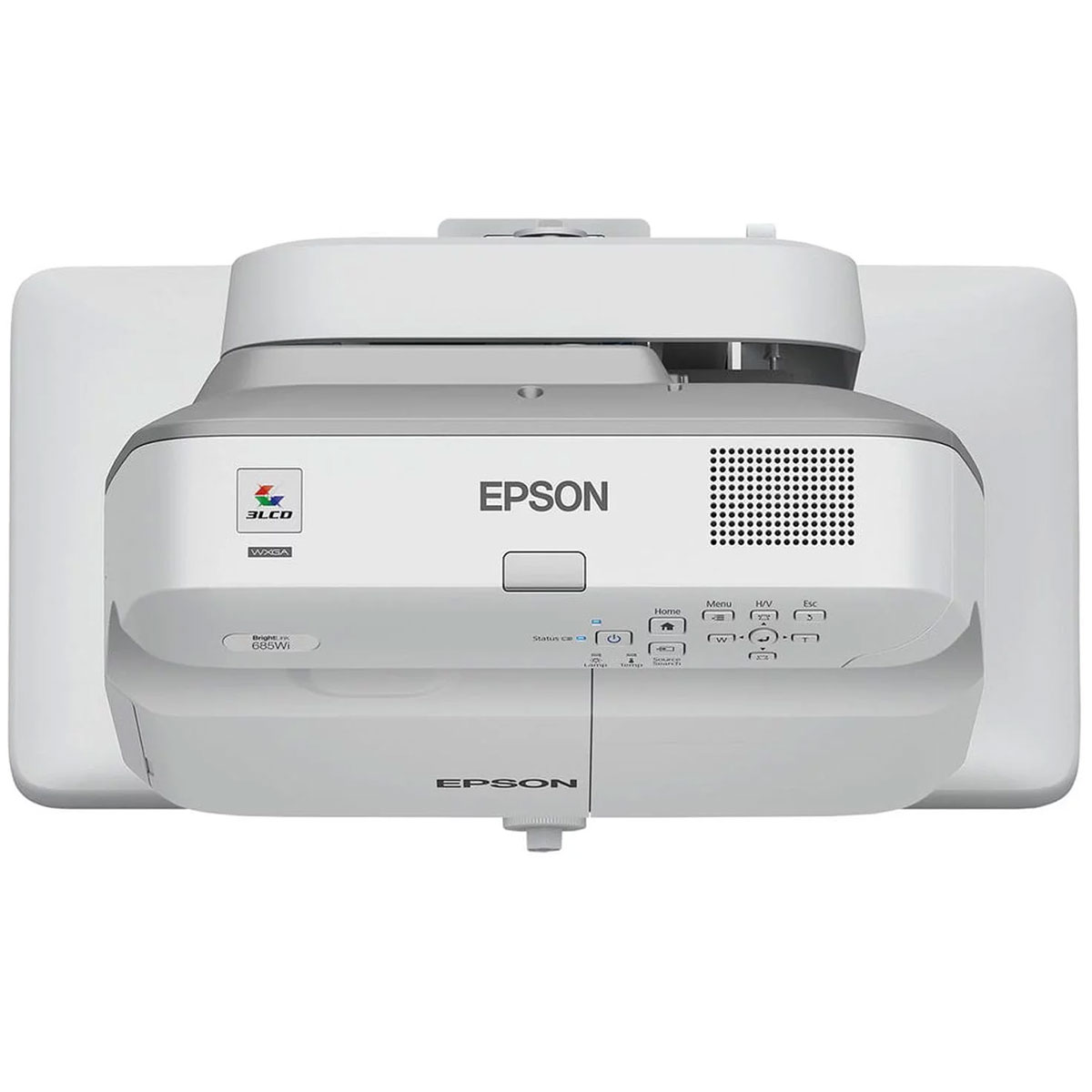

Up to 100-inch display and outstanding quality
HD-ready WXGA resolution with Epson 3LCD technology
Dual-pen annotation
Two users can annotate at once using the included pens
Reliable
Improved reliability and a longer lamp life
Multi-screen interactivity
Combine two projectors to create one large interactive display
Wireless Connectivity (Optional)
Allows content to be shown from a range of devices
High brightness and image quality
Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than competitive projectors1. With a scalable display size of up to 100 inches, two types of content can be displayed using the split-screen without compromising on quality.
Dual pen
Epson’s interactive pens are now even more responsive and easy to use when annotating directly on screen. With the new dual pens, teacher and student or two students can work simultaneously using different attributes.
Highly reliable
Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.
Interact and enhance learning
Multi-PC projection software allows teachers and students to share content simultaneously. The moderator function allows teachers to remain in control, choosing what content to display. Combine two projectors to create one large interactive display. Split-screen capability allows teachers to display two separate types of content simultaneously, such as a lesson plan from a PC and a still image or video clip from a document camera.
Optional wireless capability
Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App2.
Specifications
| echnology | |
|---|---|
| Projection System | 3LCD Technology |
| LCD Panel | 0,59 inch with D9 |
| Image | |
| Color Light Output | 3.500 Lumen- 2.900 Lumen (economy) In accordance with IDMS15.4 |
| White Light Output | 3.500 Lumen – 2.900 Lumen (economy) In accordance with ISO 21118:2020 |
| Resolution | WXGA 2 |
| High Definition | HD ready |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 14.000 : 1 |
| Light source | Lamp |
| Lamp | 250 W, 5.000 h durability, 10.000 h durability (economy mode), 9.000 h durability (economy mode) |
| Keystone Correction | Manual vertical: ± 3 °, Manual horizontal ± 3 ° |
| Colour Video Processing | 10 Bits |
| 2D Vertical Refresh Rate | 100 Hz – 120 Hz |
| Colour Reproduction | Upto 1.07 billion colours |
| Optical | |
| Throw Ratio | 0,28 – 0,37:1 |
| Zoom | Digital, Factor: 1 – 1,35 |
| Lens | Optical |
| Screen Size | 60 inches – 100 inches |
| Projection Distance Wide | 0,4 m ( 60 inch screen |
| Projection Distance Tele | 0,6 m ( 100 inch screen |
| Projection Lens F Number | 1,6 |
| Projection Lens Focal Length | 3,7 mm |
| Projection Lens Focus | Manual |
| Offset | 6 : 1 |
| Connectivity | |
| USB Display Function | 3 in 1: Image / Mouse / Sound |
| Interfaces | USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11b/g/n (optional), VGA in (2x), VGA out, HDMI in (3x), Composite in, RGB in (2x), RGB out, MHL, Jack plug out, Jack plug in (3x), Microphone input, Sync. in, Sync. out |
| Epson iProjection App | Ad-Hoc / Infrastructure |
| Advanced Features | |
| Security | Kensington lock, Password lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection |
| 2D Colour Modes | Dynamic, Cinema, Presentation, sRGB, Blackboard |
| Other features | AV Mute Slide, Auto Calibration, Auto brightness adjustment, Automatic input selection, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dynamic lamp control, Easy OSD pre-setting, Home Screen, Interactive, Long lamp life, MHL audio/video interface, Microphone input, PC Interactive, PC free annotation, Split-Screen-Function |
| Interactivity | Yes – pen |
| Video Color Modes | Blackboard, Cinema, Dynamic, Presentation, sRGB, Whiteboard |
| Projector control | via: AMX, Crestron, Control4 |
| General | |
| Power consumption | 301 Watt (Normal On-Mode), 258 Watt (Eco On-Mode), 354 Watt (Normal Peak-mode), 309 Watt (Eco Peak-Mode), 0,37 Watt (Energy saving standby) |
| Supply Voltage | AC 100 V – 240 V, 50 Hz – 60 Hz |
| Product dimensions | 367 x 400 x 149 mm (Width x Depth x Height) |
| Product weight | 5,9 kg |
| Noise Level | Normal: 35 dB (A) – Economy: 30 dB (A) – Eco2: 29 dB (A) |
| Supported Temperature | Operation 5° C – 35° C, Storage -10° C – 60° C |
| Supported Humidity | Operation 20% – 80%, Storage 10% – 90% If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling. If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance. |
| Included Software | Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projector Management |
| Options | Air filter ELPAF38, Connection and control box, Document camera, External Speaker, Pen tip(Felt), Pen tip(Teflon), USB extension cable, Wireless LAN unit |
| Compatible Operating Systems | Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04 LTS, Windows 10, Windows 8, Windows 8.1 |
| Loudspeaker | 16 Watt |
| What’s in the box | Interactive pens, Main unit, Pen tray, Power cable, Quick Start Guide, Remote control incl. batteries, Safety Cable, USB cable, User Manual (CD-ROM), Wall hanging bracket, Warranty card |
| Room Type / Application | Meeting room / Classroom |
| Positioning | Wall Mounted |
| Colour | White / Grey |
| Other | |
| Warranty | 60 months Carry in or 8.000 h, Lamp: 60 months or 1.000 h |
